EXTRA HEAVY FEEDER

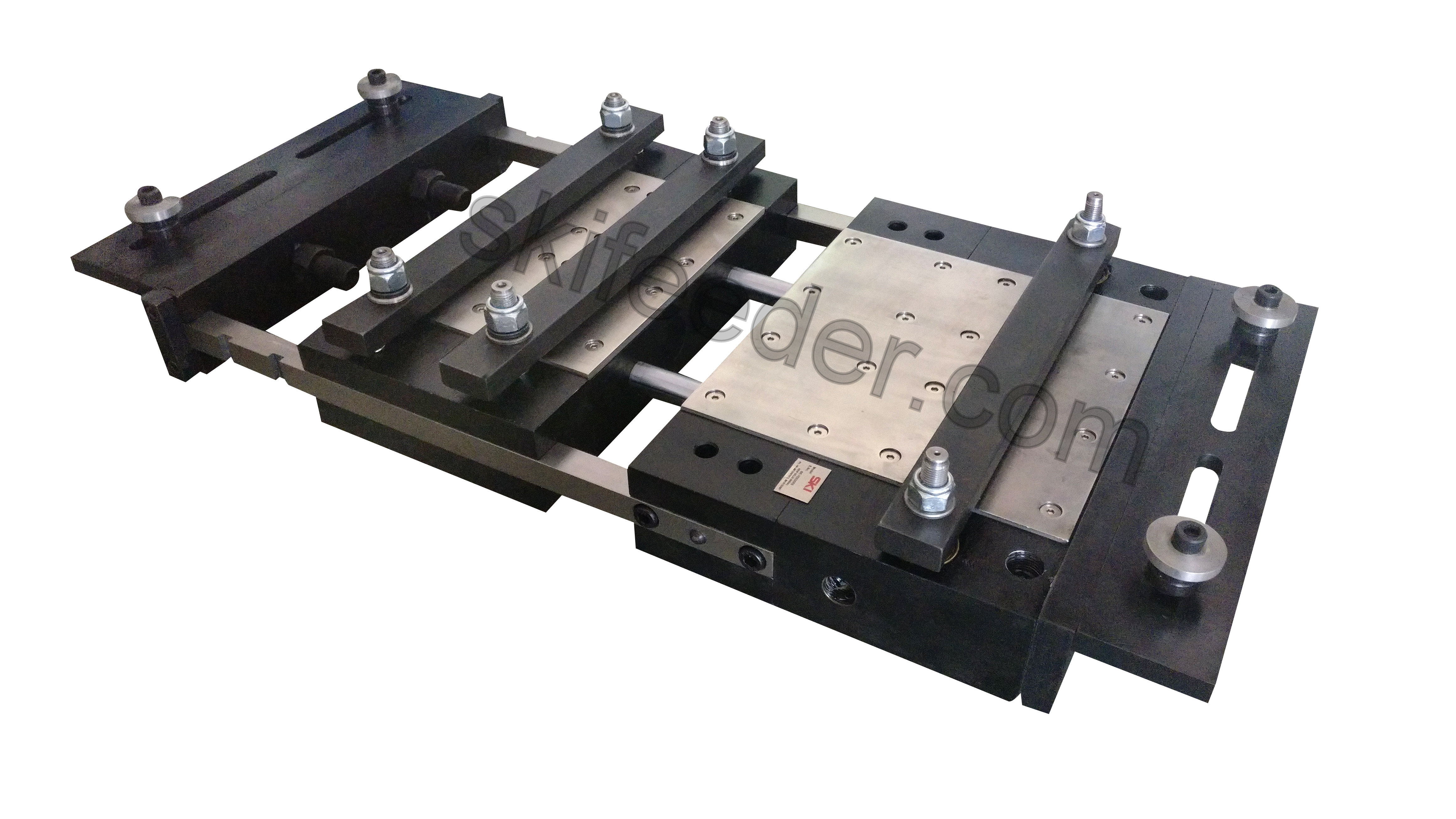

Double Pulling, Double Clamping. Extra Heavy Duty Pneumatic Feeder is specially designed for feeding large, wide and thick metal sheets. Equipped with dual cylinders, double moving blocks, and double clamp mechanisms, it provides high pulling force for smooth, stable, and accurate material feeding. Ideal for heavy-duty press applications, it supports material widths from 200 mm to 400 mm, feed lengths from 150 mm to 400 mm, and material thickness from 1.8 mm to 3.5 mm, with customization available to meet specific production requirements.

explore more explore more

Technical Specification

Model No. Max Width (mm) Max Stroke Length (mm) Max Strip Thickness (mm) Max Strokes Per Minute Working Air Pressure (bars)
EH1X-A150 2001503.580 7 - 8
EH1X-A200 2002003.260 7 - 8
EH1X-B200 250200370 7 - 8
EH1X-B250 250250360 7 - 8
EH1X-C200 300200350 7 - 8
EH1X-C300 300300340 7 - 8
EH1X-D250 3502503.240 7 - 8
EH1X-E250 350350330 7 - 8

* Use the table for exact EXTRA HEAVY duty model selection, then confirm pneumatic air feeder model size, control type, mounting method, and air supply before quotation.

* Custom-built for material widths up to 400 mm and feeding lengths up to 400 mm to match your production requirements.

Different Types of EXTRA HEAVY Duty Feeder

Standered

Standered

Ideal for single-step stamping operations, providing press-synchronized solenoid feeding for smooth and accurate material handling.

Solenoid Feeding Control

Solenoid Feeding Control

For press stroke conditions where the floating rod is not suitable for reliable feeding timing.

Guide-Pin Pneumatic Feeder

Guide-Pin Pneumatic Feeder

Designed for guide-pin applications requiring special feed timing to ensure precise material alignment before each stamping cycle.

Type 4

Accessories for Installation

Installation Accessories

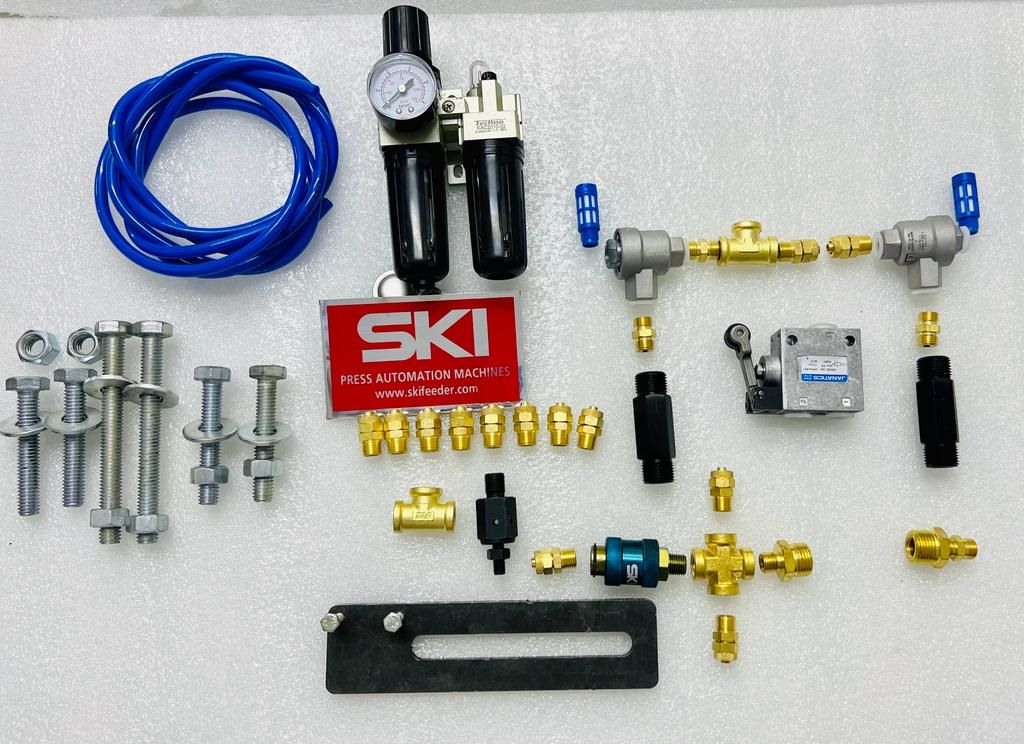

These accessories are used for the proper installation of pneumatic feeders and help ensure smooth, stable, and reliable operation. These installation accessories vary depending on the pneumatic feeder model and application requirements.

Spare Parts Support

Keep your pneumatic feeder running at its best with the right replacement parts. If any component becomes worn, damaged, or affects feeding performance, our team helps you identify the required part and provides a suitable replacement.

  • Send the feeder model, nameplate details, and photos or videos of the problem.
  • We inspect the issue and recommend the correct spare part for your feeder.
  • Available parts include seals, clamps, valves, fasteners, holders, and other pneumatic feeder components.
  • Spare parts are supplied according to the feeder model and machine configuration to ensure proper fit and reliable performance.
Cartage
Distributer with Pipe
Main Piston with Shaft
Fix Piston & Spring
Moving Piston & Spring
O Ring Set

* Some common spare parts are shown above. Additional parts are available as per the feeder model.
