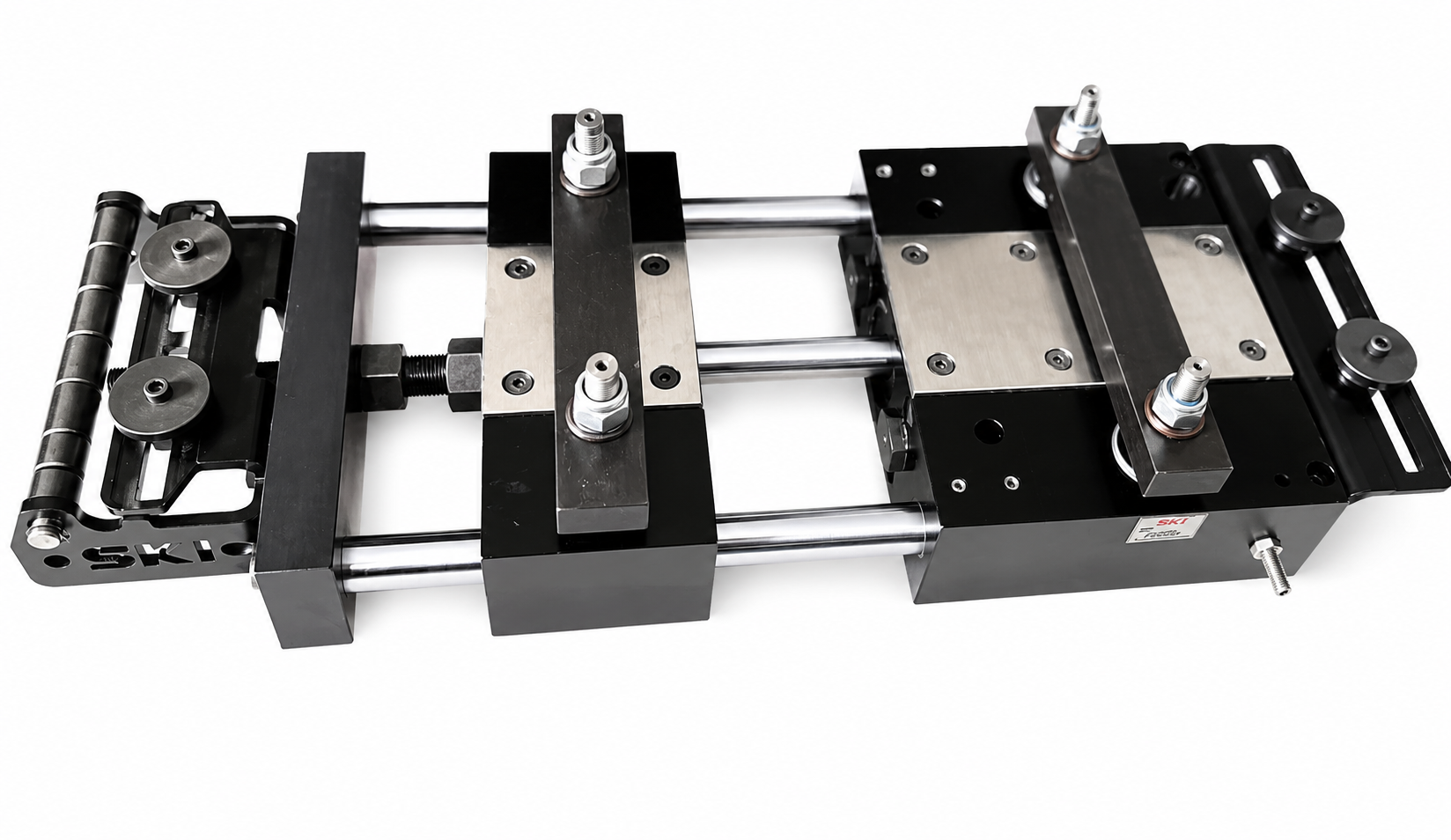

SKI Heavy Duty Pneumatic Feeders deliver precise and reliable strip feeding for press automation. With a compact design, precision pneumatic controls, mechanical gripper system and optional strip guides, they ensure smooth, accurate feeding for thin to heavy steel strips across a wide range of metal stamping applications.
| Model No. | Max Width (mm) | Max Stroke Length (mm) | Max Strip Thickness (mm) | Max Strokes Per Minute | Working Air Pressure (bars) |
|---|---|---|---|---|---|
| H1X-B50 | 100 | 50 | 2.2 | 150 | 6 - 7 |
| H1X-B100 | 100 | 100 | 2 | 120 | 6 - 7 |
| H1X-B150 | 100 | 150 | 2 | 100 | 6 - 7 |
| H1X-B200 | 100 | 200 | 1.6 | 80 | 6 - 7 |
| H1X-C100 | 150 | 100 | 2.2 | 130 | 6 - 7 |
| H1X-C150 | 150 | 150 | 2 | 120 | 6 - 7 |
| H1X-C200 | 150 | 200 | 1.8 | 80 | 6 - 7 |
| H1X-D100 | 200 | 100 | 2 | 100 | 6 - 7 |
| H1X-D200 | 200 | 200 | 1.8 | 80 | 6 - 7 |
| H1X-E100 | 250 | 150 | 1.6 | 80 | 6 - 7 |
| H1X-E250 | 250 | 250 | 1.6 | 60 | 6 - 7 |
* Use the table for exact heavy duty model selection, then confirm pneumatic air feeder model size, control type, and air supply before quotation.
* Custom-built for material widths up to 400 mm and feeding lengths up to 400 mm to match your production requirements.

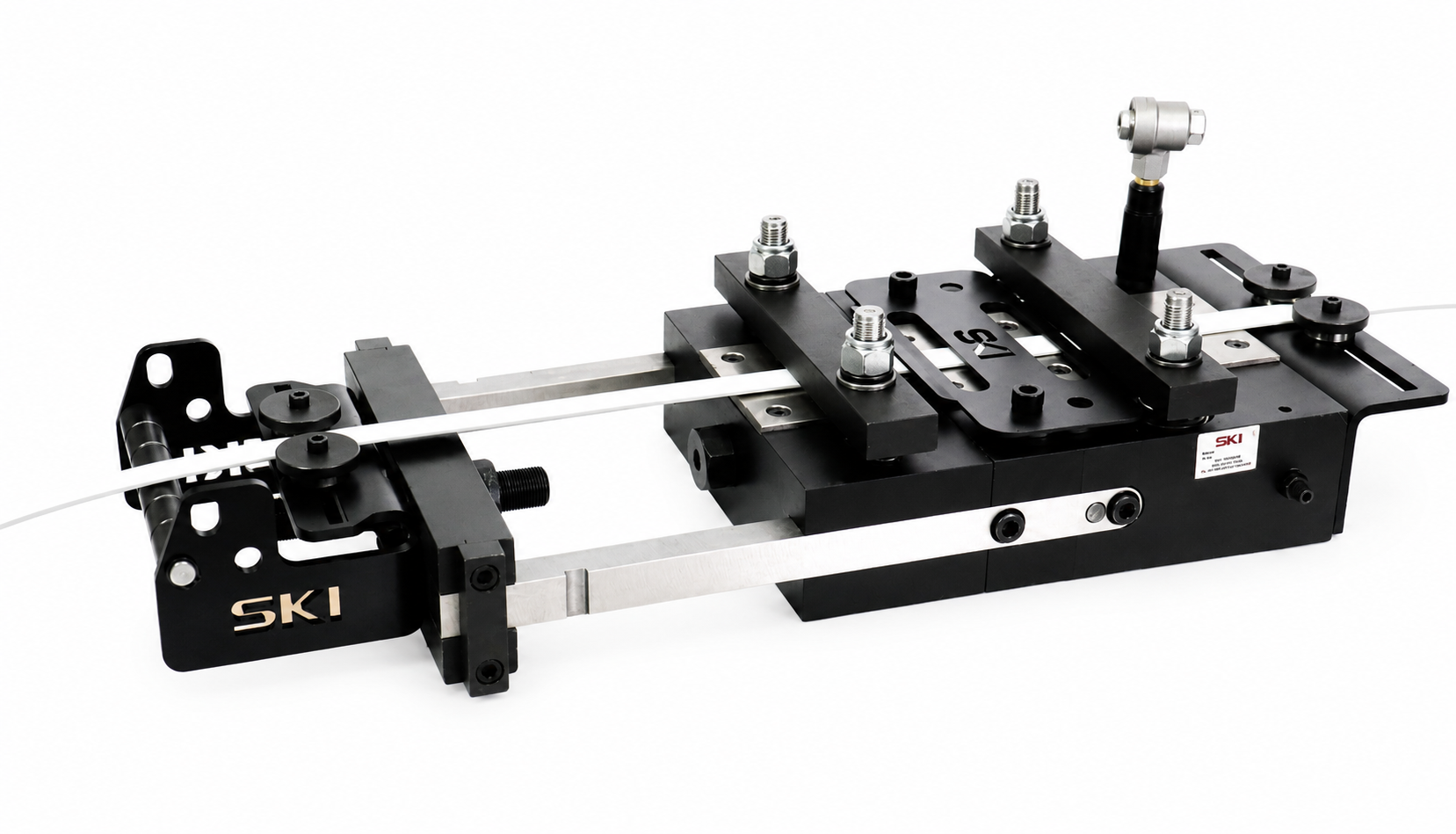

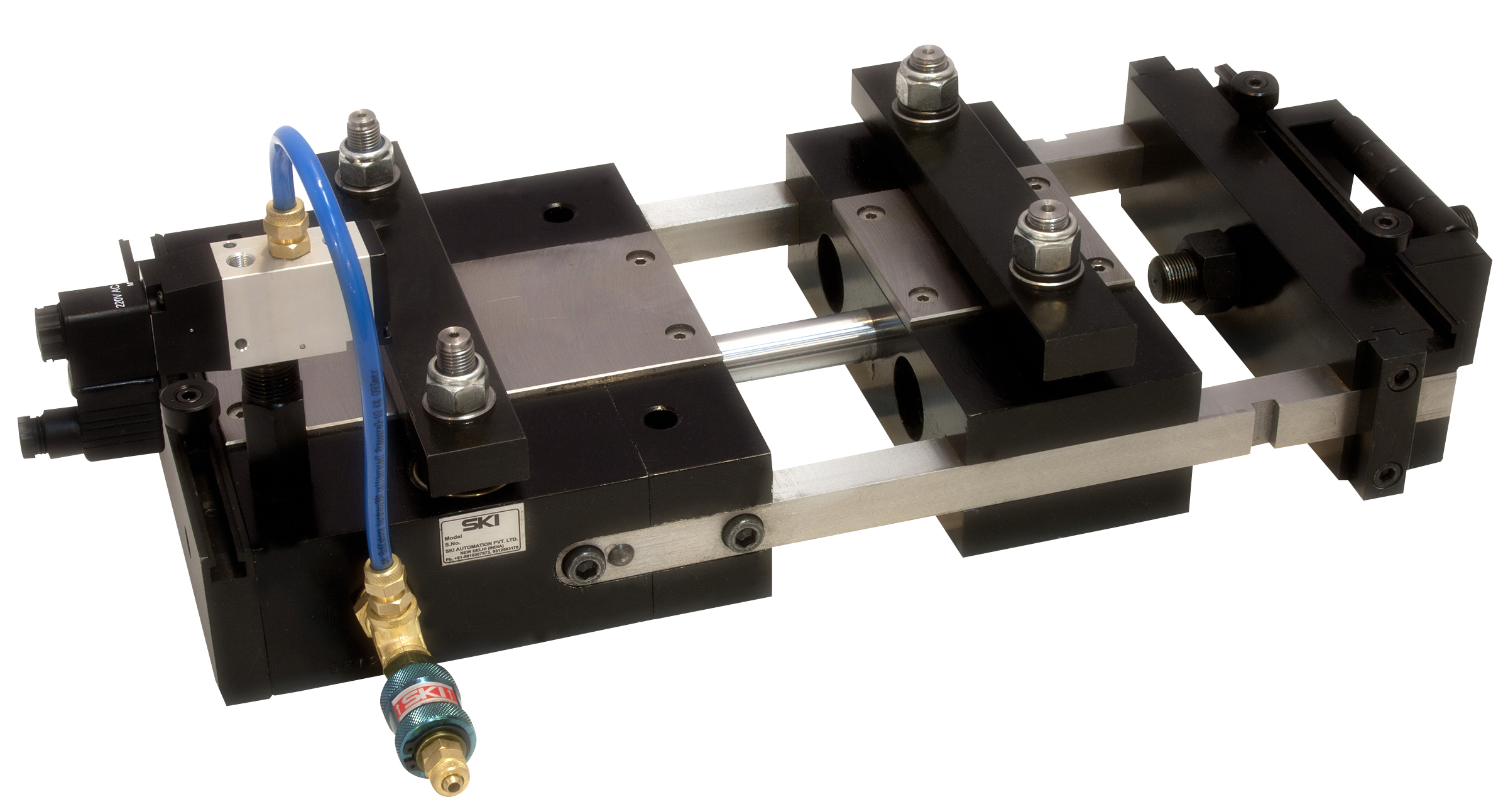

Suitable for simple single-step stamping solenoid feeding control applications with press-synchronized material feeding.
Recommended for press applications where floating rod synchronization is not suitable for accurate feeding timing.
Designed for guide-pin applications requiring special feed timing to ensure precise material alignment before each stamping cycle.

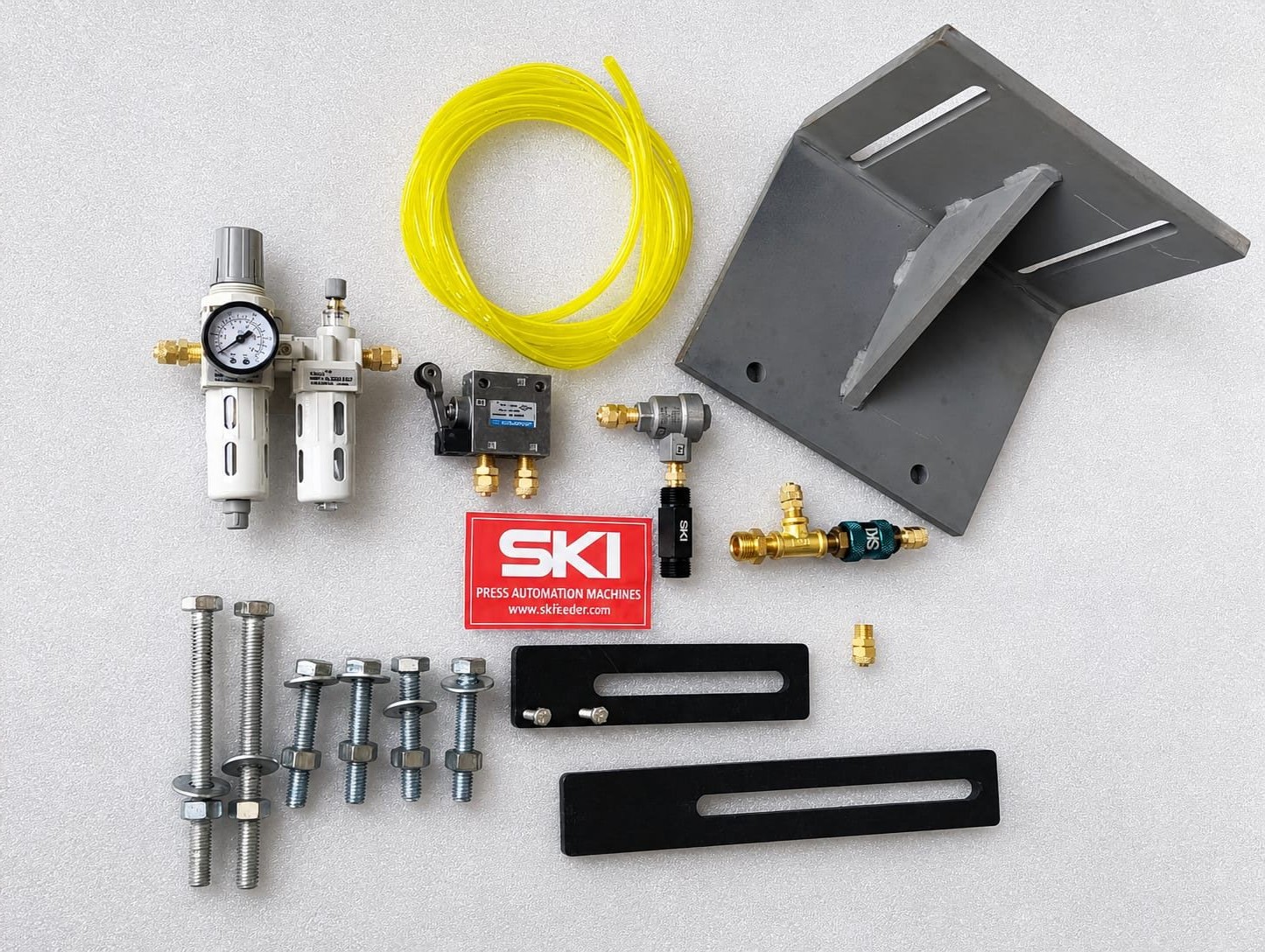

These accessories are used for the proper installation of pneumatic feeders and help ensure smooth, stable, and reliable operation. These installation accessories vary depending on the pneumatic feeder model and application requirements.

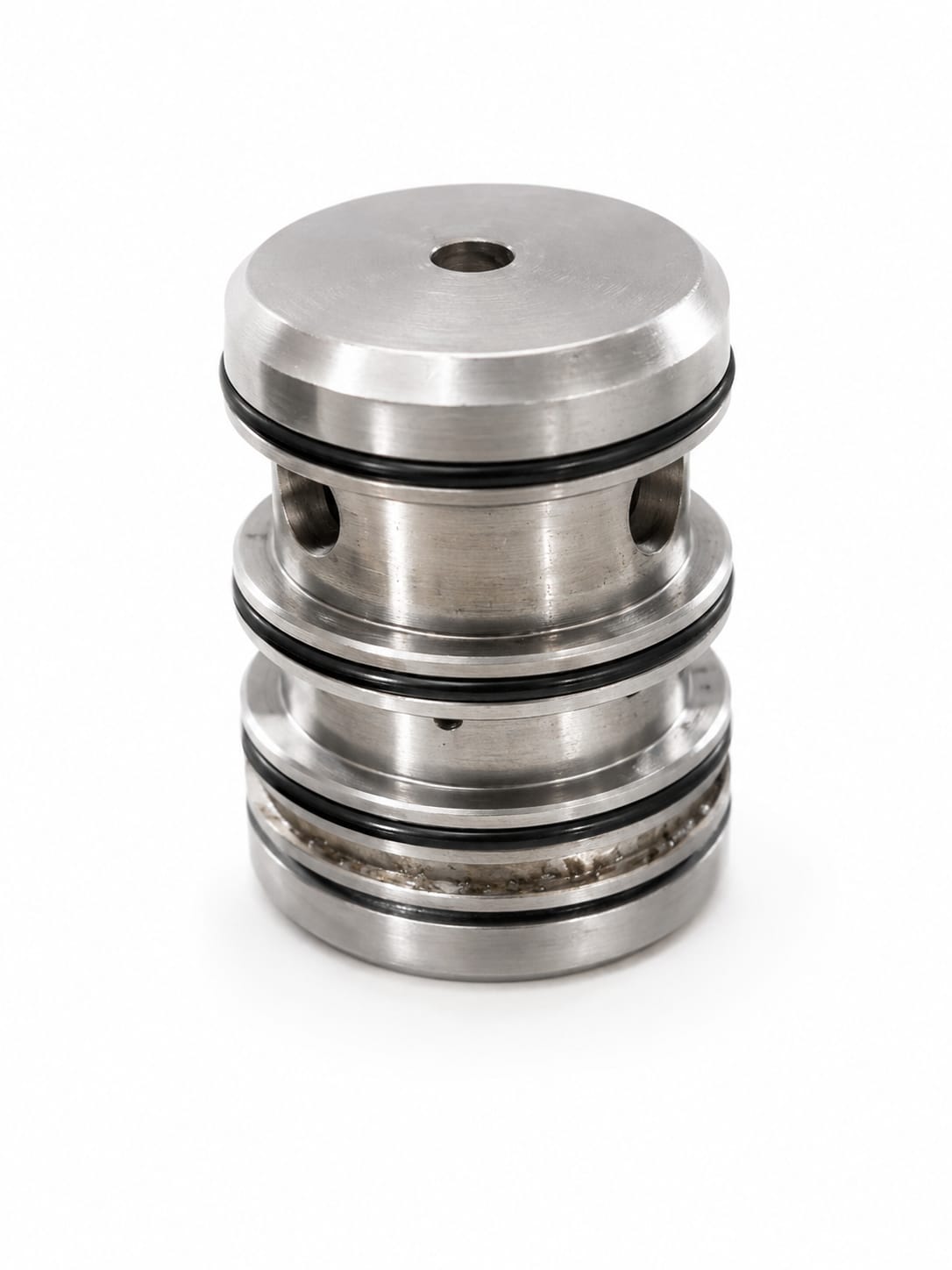

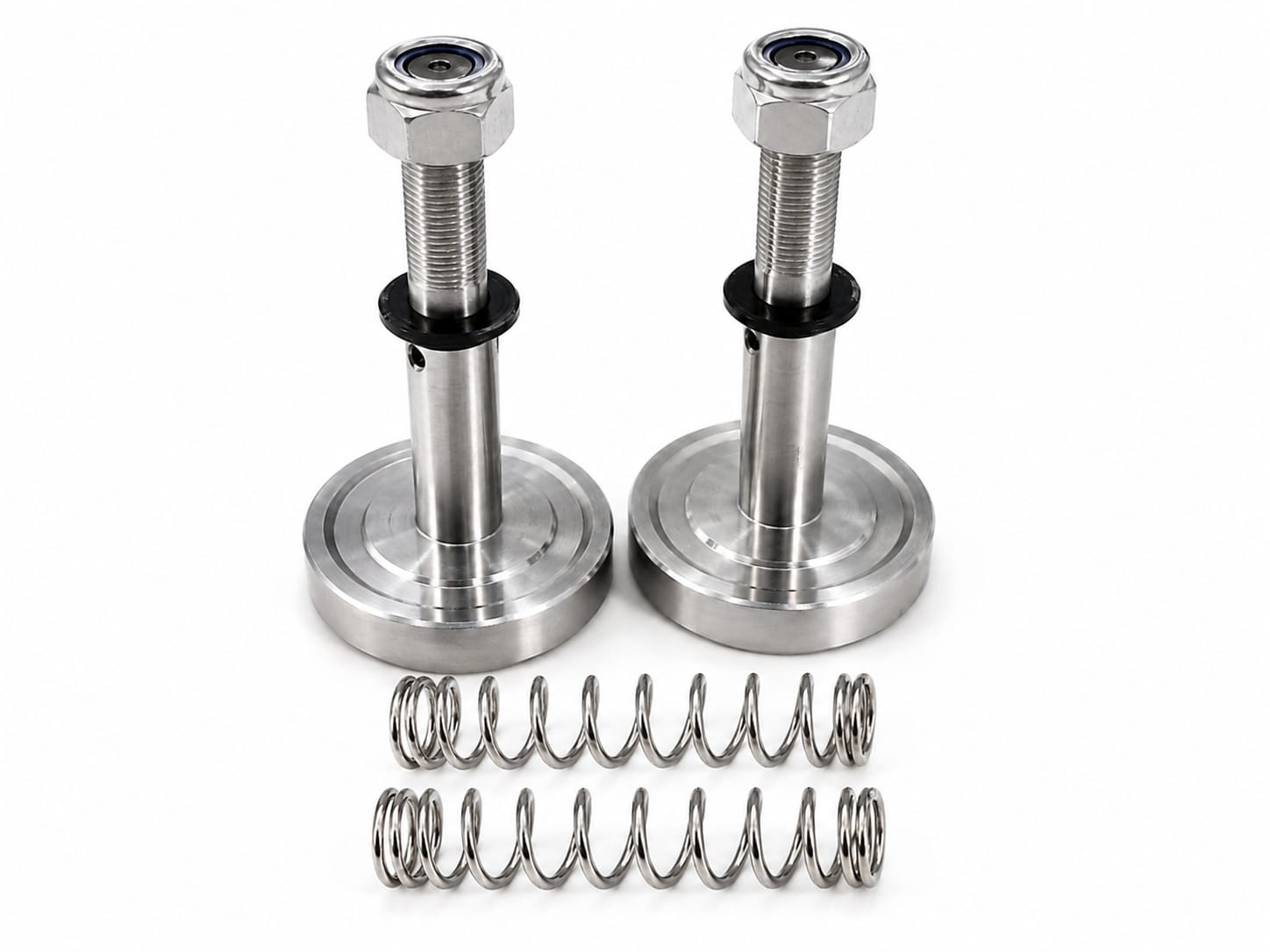

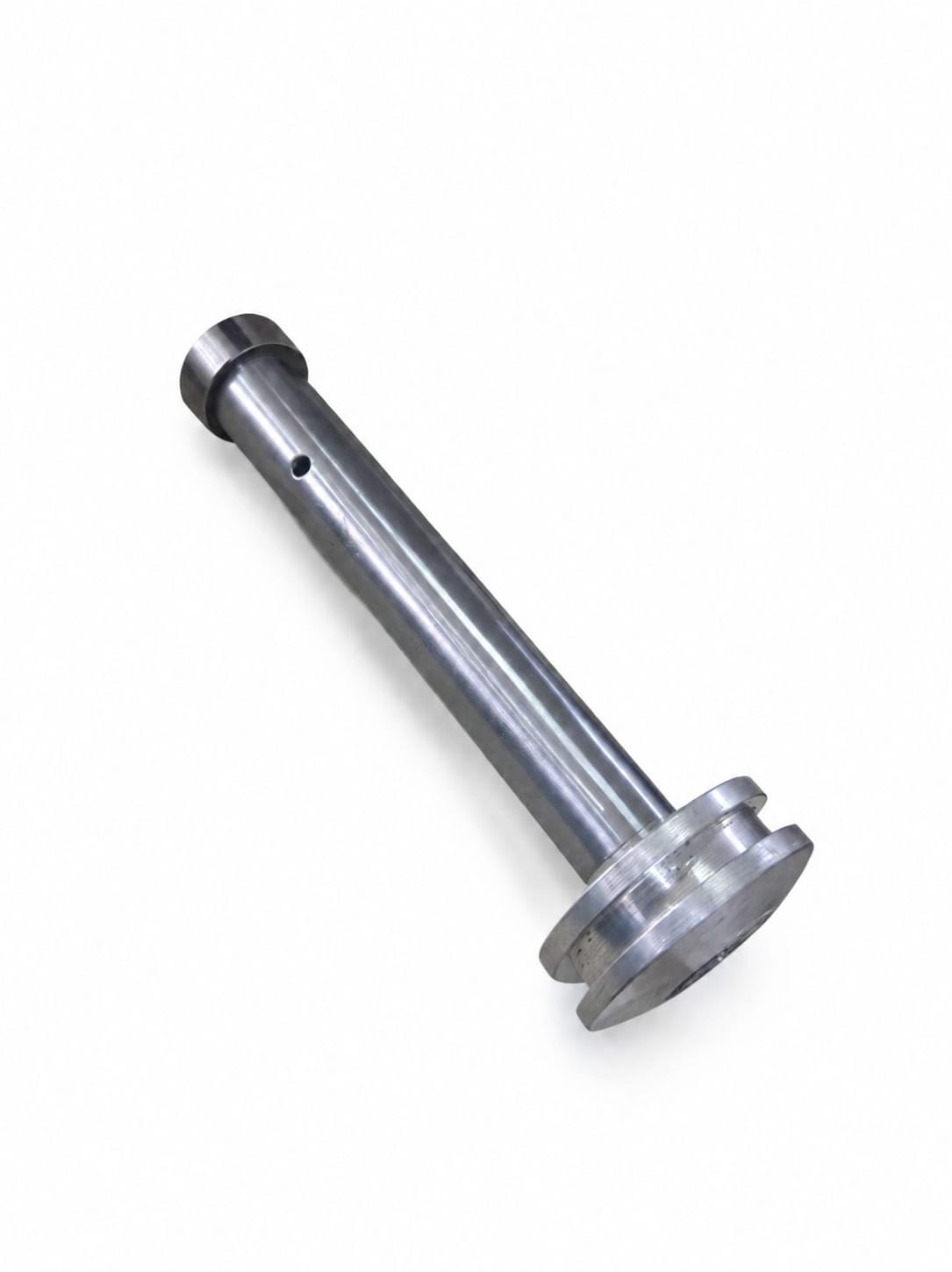

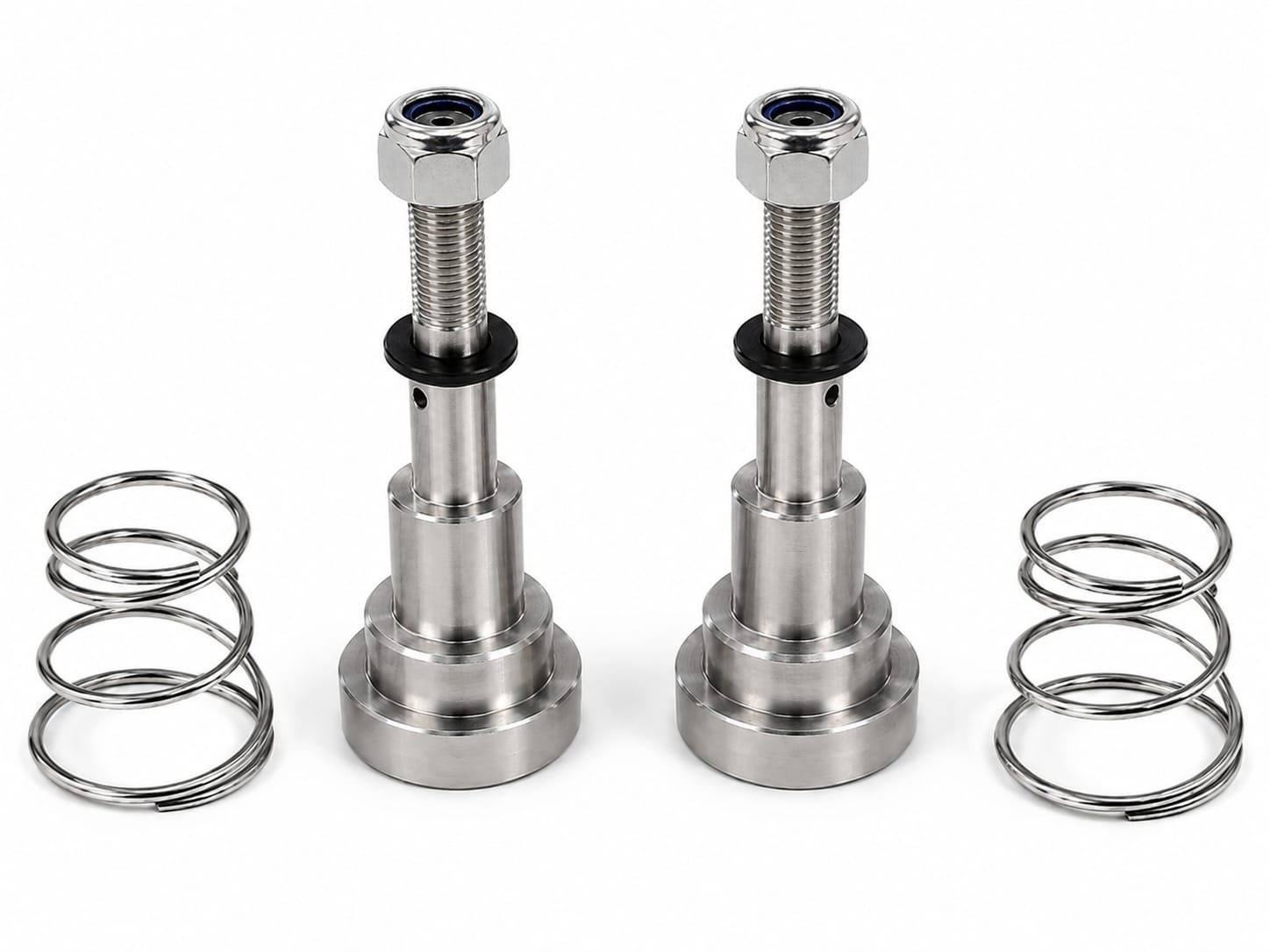

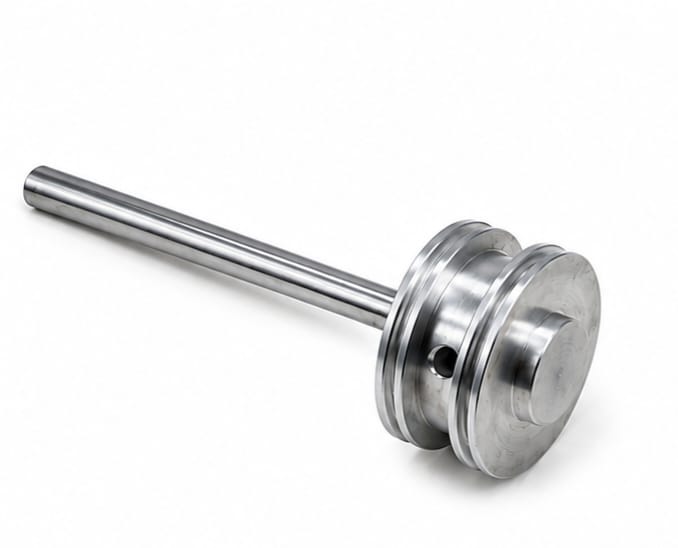

Keep your pneumatic feeder running at its best with the right replacement parts. If any component becomes worn, damaged, or affects feeding performance, our team helps you identify the required part and provides a suitable replacement.
* Some common installation and spare parts are shown above. Additional parts are available as per the feeder model.
