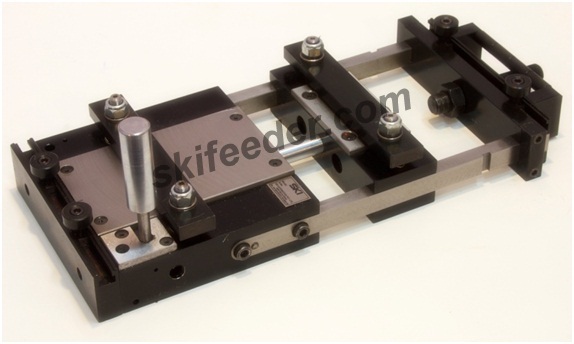

Medium Duty Pneumatic Feeders are specially designed for feeding thin metal strips from 0.1 mm to 1 mm thickness. They ensure smooth, accurate, and high-speed feeding, making them ideal for precision stamping, punching, and sheet metal processing applications.
| Model No. | Max Width (mm) | Max Stroke Length (mm) | Max Strip Thickness (mm) | Max Strokes Per Minute | Air Pressure (bars) |
|---|---|---|---|---|---|
| 1X-A50 | 50 | 50 | 1 | 200 | 5 - 6 |
| 1X-A100 | 50 | 100 | 1 | 140 | 5 - 6 |
| 1X-A150 | 50 | 150 | 1 | 100 | 5 - 6 |
| 1X-B50 | 100 | 50 | 1 | 140 | 5 - 6 |
| 1X-B100 | 100 | 100 | 1 | 140 | 5 - 6 |
| 1X-B150 | 100 | 150 | 1 | 100 | 5 - 6 |
| 1X-C100 | 150 | 100 | 1 | 120 | 5 - 6 |
| 1X-C150 | 150 | 150 | 0.8 | 100 | 5 - 6 |
| 1X-D100 | 200 | 100 | 0.8 | 120 | 5 - 6 |
| 1X-D150 | 200 | 150 | 0.8 | 100 | 5 - 6 |
| 1X-D200 | 200 | 200 | 0.6 | 80 | 5 - 6 |
* Use the table for exact medium duty model selection, then confirm pneumatic air feeder model size, control type, mounting method, and air supply before quotation.
* Custom-built for material widths up to 300 mm and feeding lengths up to 300 mm to match your production requirements.

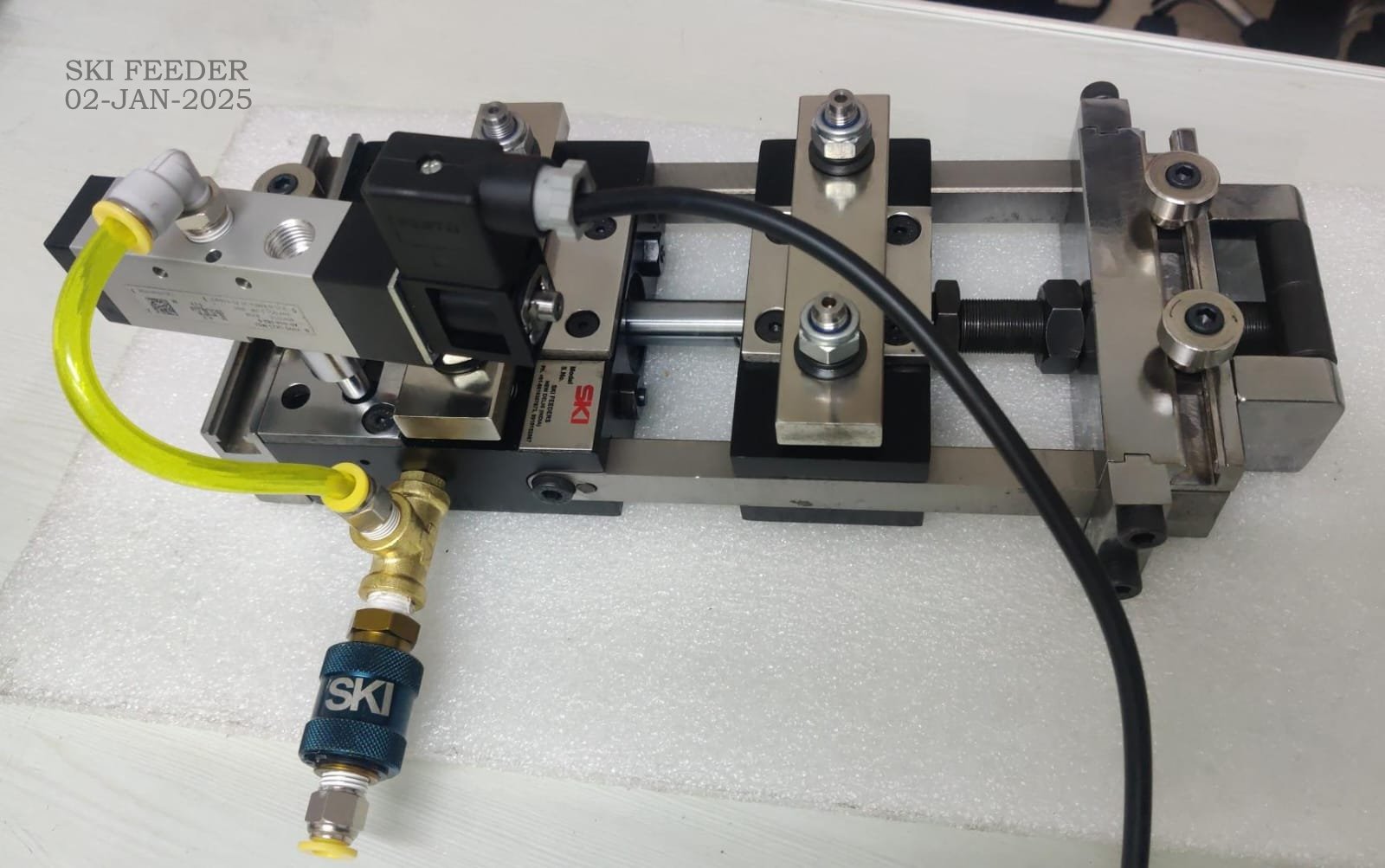

Suitable for simple single-step stamping solenoid feeding control applications with press-synchronized material feeding.
For press stroke conditions where the floating rod is not suitable for reliable feeding timing.

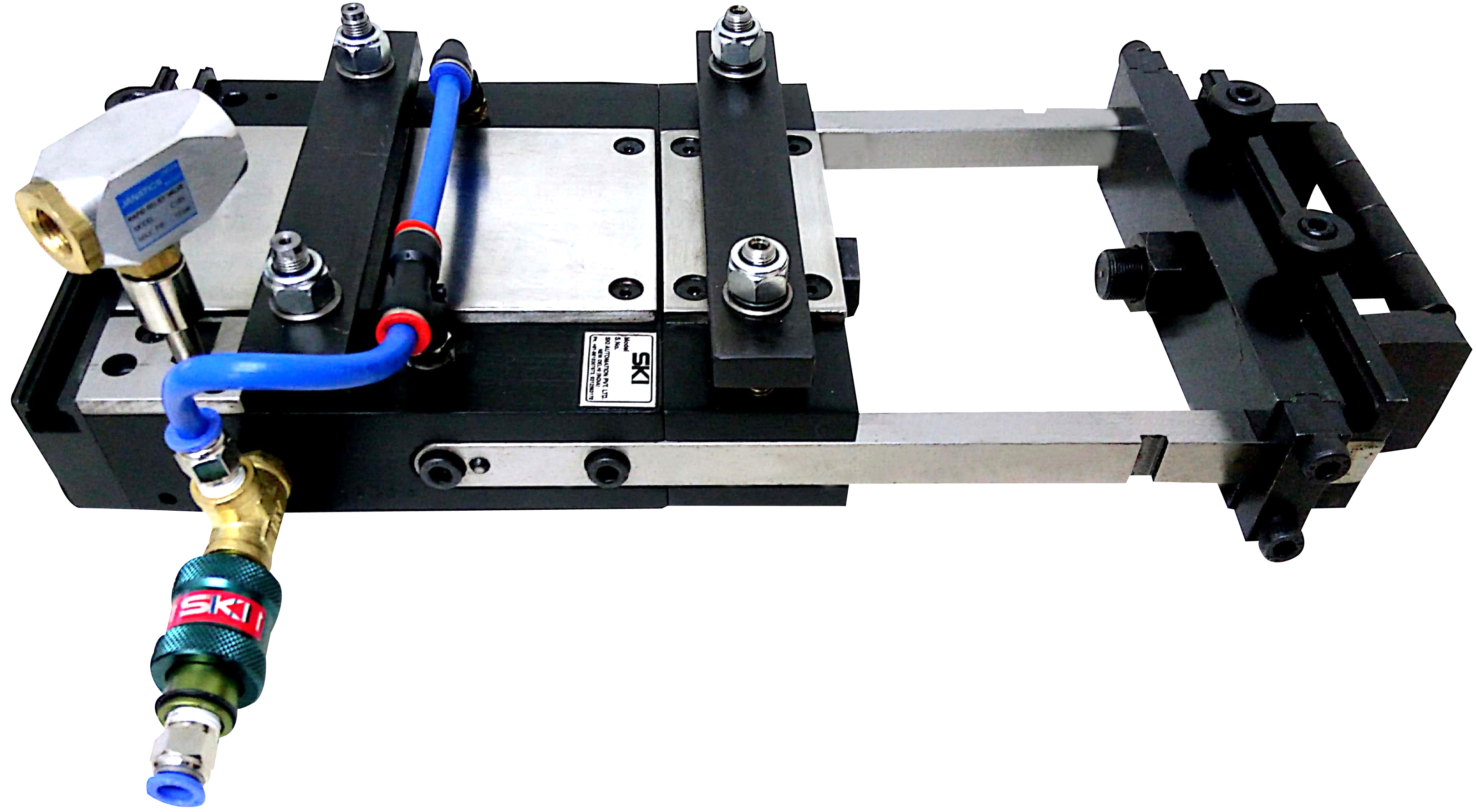

Designed for guide-pin applications requiring special feed timing to ensure precise material alignment before each stamping cycle.
Designed for precise feeding of very thin materials like paper, aluminium foil, copper foil, and other delicate strips.
These accessories are used for the proper installation of pneumatic feeders and help ensure smooth, stable, and reliable operation.
These installation accessories vary depending on the pneumatic feeder model and application requirements.

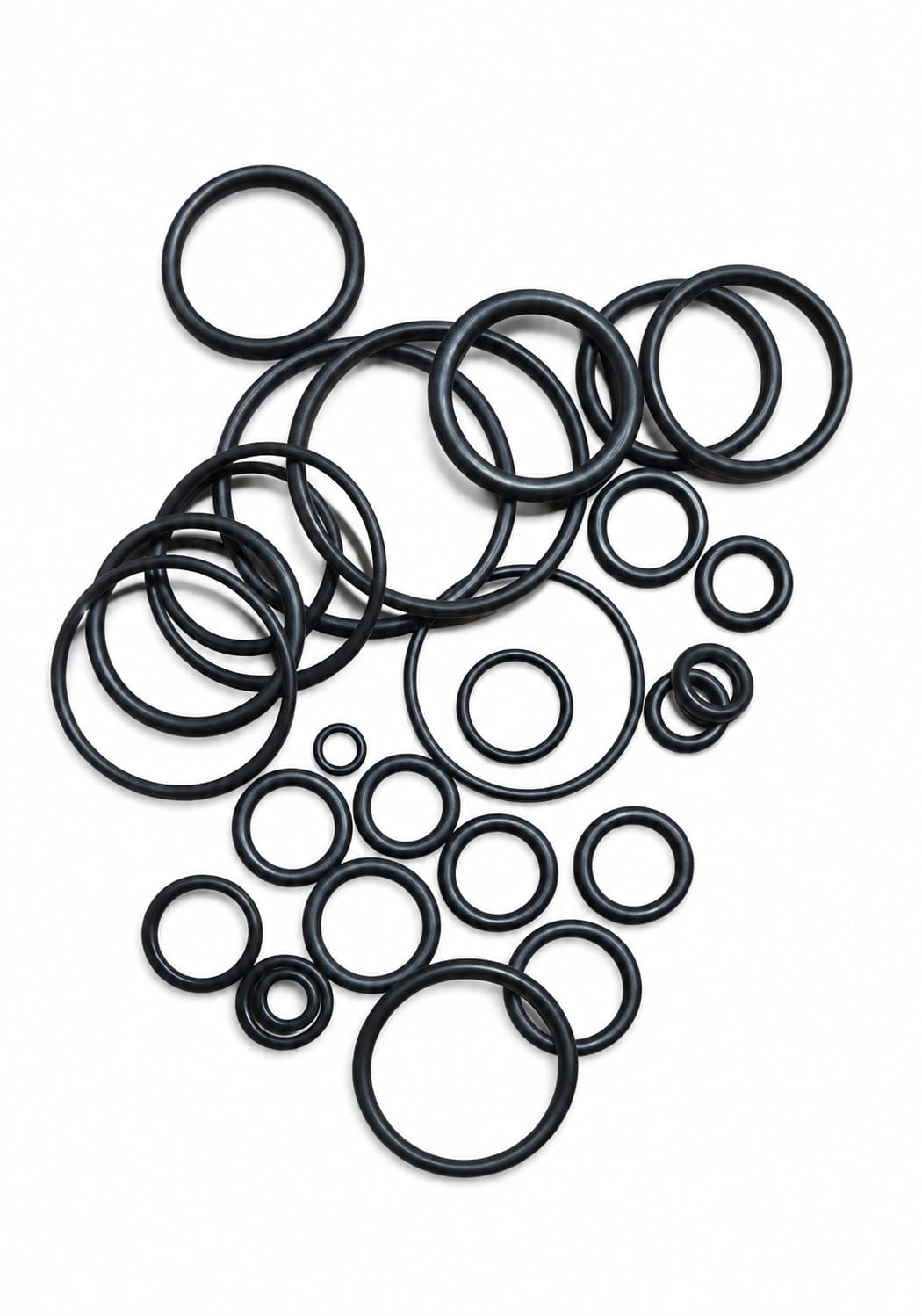

Keep your pneumatic feeder running at its best with the right replacement parts. If any component becomes worn, damaged, or affects feeding performance, our team helps you identify the required part and provides a suitable replacement.
* Some common spare parts are shown above. Additional parts are available as per the feeder model.
